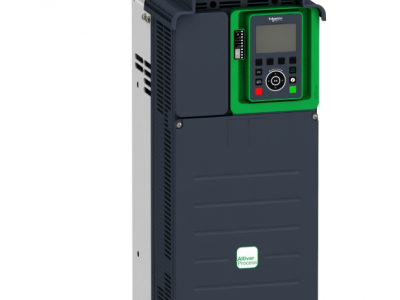

施耐德变频器 ATV630D30N4 30KW

变频器

过程应用

ATV630

标准版本

异步电机
同步电机

Integrated with 50 m conforming to EN/IEC 61800-3 category C2
Integrated with 150 m conforming to EN/IEC 61800-3 category C3

IP21 符合 IEC 61800-5-1
IP21 符合 IEC 60529

UL type 1 conforming to UL 508C

强制通风

50...60 Hz - 5...5 %

380...480 V - 15...10 %

30 kW (normal duty)
22 kW (heavy duty)

40 hp normal duty
30 hp heavy duty

53.3 A at 380 V (normal duty)
45.9 A at 480 V (normal duty)
40.5 A at 380 V (heavy duty)
35.8 A at 480 V (heavy duty)

50 kA

38.2 kVA 在…上 480 V (标准负载)
29.8 kVA at 480 V (heavy duty)

61.5 A 在…上 4 kHz 适用 标准负载
46.3 A 在…上 4 kHz 适用 重载

67.7 A 在 60 s (标准负载)
69.5 A 在 60 s (重载)

标准变转矩
优化转矩模式
标准恒转矩

永磁同步电机
Synchronous reluctance motor

0.0001…0.5 kHz

0.1…599 Hz

4 kHz

2...12 kHz 可调
4...12 kHz 有

STO (safe torque off) SIL 3

16个预置速度

以太网
以太网Modbus
Modbus 串行

Slot A: communication module, Profibus DP V1
Slot A: communication module, Profinet
Slot A: communication module, DeviceNet
Slot A: communication module, Modbus TCP/EtherNet/IP
Slot A: communication module, CANopen daisy chain RJ45
Slot A: communication module, CANopen SUB-D 9
Slot A: communication module, CANopen screw terminals
Slot A/slot B: digital and analog I/O extension module
Slot A/slot B: output relay extension module
卡槽A: 通讯模块, Ethernet IP/Modbus TCP/MD-link
通讯模块, BACnet MS/TP
通讯模块, 以太网Powerlink

<= 电源电压

1.1 x In during 60 s (normal duty)
1.5 x In during 60 s (heavy duty)

可调
自动 无论负载情况
可以抑制
不适用永磁同步电机规律

线性可单调 从0.01...9999S

采用直流注入

Thermal protection: motor
Safe torque off: motor
Motor phase break: motor
Thermal protection: drive
Safe torque off: drive
过热: 驱动
Overcurrent between output phases and earth: drive
输出电压过载: 驱动
短路保护: 驱动
电机断相: 驱动
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
超速: 驱动
Break on the control circuit: drive

Display unit: 0.1 Hz
Analog input: 0.012/50 Hz

控制: 可拆卸螺钉端子 0.5...1.5 mm² AWG 20...AWG 16
Line side: screw terminal 25...50 mm²/AWG 4...AWG 1
Motor: screw terminal 25...50 mm²/AWG 4...AWG 1

RJ45 (在远程图形终端) 适用 Ethernet/Modbus TCP
RJ45 (在远程图形终端) 适用 Modbus 串行

半双工, 全双工, 自动协商 Ethernet/Modbus TCP

1…247 for Modbus serial

Slave Modbus TCP

External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
内部电源 用于参考电位计 (1 至 10 kOhm): 10.5 V 直流 +/- 5 %, <10 mA, 保护类型: 过载和短路保护
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection

3 LED本地诊断:
3 LED (双色)集成通讯状态:
4 颗LED指示灯 (双色)通讯模块状态:
1 个LED (红色)电压状态:

226 mm

673 mm

271 mm

28 kg

3

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0...20 mA/4...20 mA, impedance: 250 Ohm, resolution 12 bits

8

DI1...DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm

DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2

Positive logic (source) (DI1...DI6), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1...DI6), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1)
Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1)

2

软件-可配置电压 AO1, AO2: 0...10 V DC 阻抗 470 Ω, 分辨率 10 bits
软件-可配置电流 AO1, AO2: 0...20 mA, 分辨率 10 bits

2 ms +/- 0.5 ms (DI1...DI4) - discrete input
5 ms +/- 1 ms (DI5, DI6) - discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) - 模拟量输入
10 ms +/- 1 ms (AO1) - 模拟量输出

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AO1, AO2 用于60 °C的温度变动 模拟量输出

AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AO1, AO2: +/- 0.2 % 适用 模拟量输出

3

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

Relay output R1, R2, R3: 5 mA at 24 V DC

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

电源与控制端子之间

建筑-HVAC 离心式压缩机
食品和饮料加工 其他应用设备
开采矿产和金属 风机
开采矿产和金属 泵
石油和天然气 风机
水和废水 其他应用设备
建筑-HVAC 螺杆式压缩机
食品和饮料加工 泵
食品和饮料加工 风机
食品和饮料加工 自动化
石油和天然气 电潜泵(ESP)
石油和天然气 水喷射泵
石油和天然气 高效能燃油泵
石油和天然气 提炼用压缩器
水和废水 离心泵
水和废水 容积泵
水和废水 电潜泵(ESP)
水和废水 螺杆泵
水和废水 螺杆压缩机
水和废水 螺杆式压缩机
水和废水 离心式压缩机
水和废水 风机
水和废水 输送机
水和废水 混合器

30…50 kW 在…上 380…440 V 3 相
30…50 kW 在…上 480…500 V 3 相

63.5 dB 符合 86/188/EEC

Natural convection: 93 W at 380 V, switching frequency 4 kHz
Forced convection: 640 W at 380 V, switching frequency 4 kHz

240 m3/h

垂直方向 +/- 10°

<48 % from 80...100 % of load conforming to IEC 61000-3-12

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

2 conforming to EN/IEC 61800-5-1

波峰至波峰 1.5 mm (f= 2…13 Hz) 符合 IEC 60068-2-6
1 gn (f= 13…200 Hz) 符合 IEC 60068-2-6

15 gn 适用 11 ms 符合 IEC 60068-2-27

5…95 % without condensation conforming to IEC 60068-2-3

-15…50 °C (without derating)
50…60 °C (有)

-40…70 °C

<= 1000 m 无
1000...4800 m 电流降额 1%/100m

UL 508C
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3
环境2分类C3 EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1

TÜV
ATEX INERIS
UL
CSA
ATEX zone 2/22
DNV-GL

CE
